Tractors > John Deere > 5215

John Deere 5215 Engine



John Deere 5215 tractor photo
2003 - 2008
Utility tractor
Carraro built
Series map:
5215
5315
41.8kw
49.6kw
Engine Detail
John Deere 3029TAT70
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Power56 hp
41.8 kW
Compression17.2:1
Rated RPM2300
Torque164.5 lb-ft
223.1 Nm
Torque RPM1600
Firing order1-2-3
Starter volts12
Starter power3.8 hp
2.8 kW
Coolant capacity10 qts (ROPS)
9.5 L
 11 qts (with cab)
10.4 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

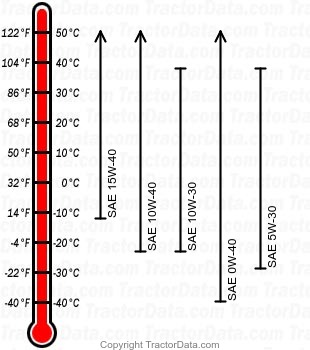

5215 diesel engine oil chart
Oil capacity9 qts
8.5 L
