County 1004
|
|
| Production | |
| Manufacturer | County |
| Four-wheel Drive (4WD) tractor | |
| Built in Fleet, England | |
| Variants | |
| FC1004 | forward-control |
| County 1004 Engine | |
| Ford 5.4L 6-cyl diesel | |
| Fuel tank | 19.9 gal 75.3 L |
 Engine details ... | |
| County 1004 Power | |
| Engine (gross) | 98.5 hp 73.5 kW |
| Engine (net) | 93 hp 69.4 kW |
| PTO (claimed) | 56 hp 41.8 kW |
| Mechanical | |
| Drive | 4x4 4WD |
| Power steering | |
| Mechanical wet disc brakes | |
| Open operator station. | |

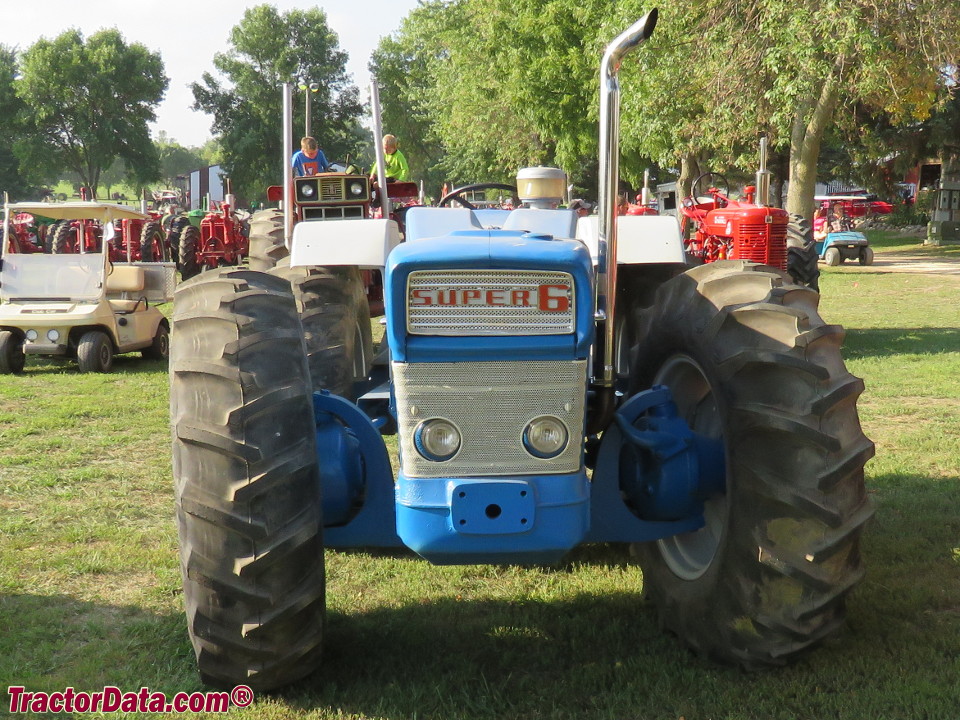

| Photos | |
 | |
 County 1004 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 6.3 gpm 23.8 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1900 |
| Dimensions & Tires | |
| Wheelbase | 71.5 inches 181 cm |
| Weight | 8300 lbs 3764 kg |
| Front tire | 14-30 |
| Rear tire | 14-30 |
 Full dimensions and tires ... | |
| References | |
 | |
| 1004 published in 1970, by County | |
| 1004 Super Six published in 1970, by County |
