Kubota L3200 Transmission


Kubota L3200 tractor photo
2011 - 2014
Standard L Series
Compact Utility tractor
Series map:
L3200
L3800
31.9hp
37.4hp
Transmission options
8-speed gear
hydrostatic
Transmission
Typegear
Gears8 forward and 4 reverse
Clutchdry
Oil capacity29.2 qts
27.6 L
Speeds
With 11.2-24 R1 rear tires.

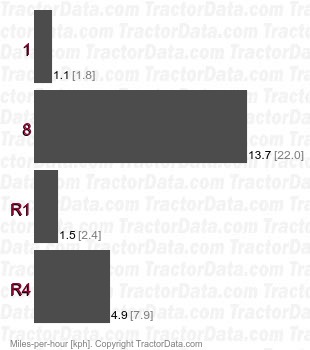

L3200  gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity24.8 qts
23.5 L
Speeds
With 11.2-24 R1 rear tires.

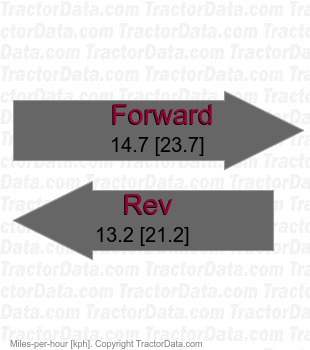

L3200  hydrostatic speeds
