John Deere 4005 Transmission


John Deere 4005 tractor photo
2008 - 2014
Compact Utility tractor
Series map:
3005
4005
4105
27.5hp
37.9hp
41.0hp
Transmission
TransmissionCollar Shift
Typepartially synchronized
Gears9 forward and 3 reverse
Oil capacity27.6 qts
26.1 L
Three speeds, plus reverse on gear shift lever with A, B, and C ranges. Synchronized shifting between the forward speeds using the clutch. Tractor must be stopped, and clutch used, to shift to reverse or shift ranges.

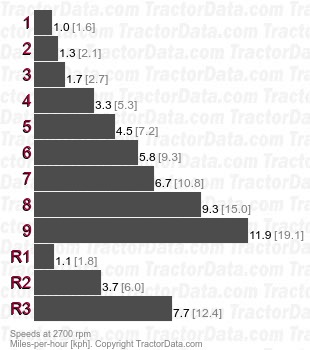

Speeds
4005 Collar Shift partially synchronized speeds
