Tractors > John Deere > 4105

John Deere 4105 Engine



John Deere 4105 tractor photo
2008 - 2014
Compact Utility tractor
Series map:
4005
4105
37.9hp
41.0hp
Engine Detail
Yanmar 3TNV84T-KJT
turbocharged diesel
3-cylinder
liquid-cooled
Displacement91.5 ci
1.5 L
Bore/Stroke3.30x3.54 inches
84 x 90 mm
Power41 hp
30.6 kW
Air cleanerdry
Compression19:1
Rated RPM2800
Torque91.8 lb-ft
124.5 Nm
Torque RPM1900
Starter volts12
Starter power1.9 hp
1.4 kW
Coolant capacity5.6 qts
5.3 L
Engine Oil

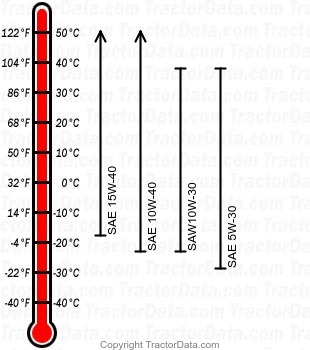

4105 diesel engine oil chart
Oil capacity4.5 qts
4.3 L
