John Deere 3005 Engine


John Deere 3005 tractor photo
2008 - 2012
3000 Series
Compact Utility tractor
Series map:
3005
4005
27.5hp
37.9hp
Engine Detail
Yanmar 3TNV82A
diesel
3-cylinder
liquid-cooled
Displacement81.2 ci
1.3 L
Bore/Stroke3.23x3.31 inches
82 x 84 mm
Rated Power (gross)27.5 hp
20.5 kW
Fuel systemdirect injection
Air cleanerdry
Compression18.1:1
Rated RPM2600
Operating RPM1000-2810
Starter volts12
Coolant capacity5 qts
4.7 L
Engine Oil

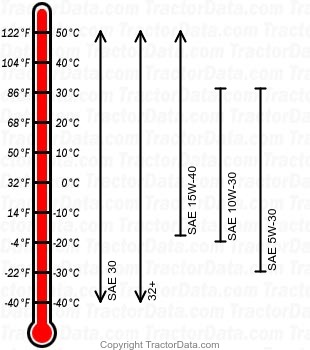

3005 diesel engine oil chart
Oil capacity4.3 qts
4.1 L
