Tractors > Long > R9500

Long R9500 Tests



Long R9500 tractor photo
1972 - 1975
Row-Crop tractor
Landini built
Series map:
R9500
108.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1107

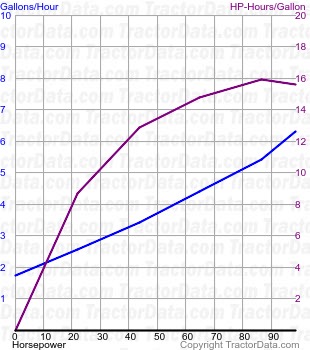

R9500 fuel use from test 1107
Nebraska Tractor Test 1107
Diesel 12-speed 2WD
September 13 - 19, 1972
Link: Nebraska Tractor Test 1107 file
PTO performance
Power at rated engine speed97.72 hp
72.9 kW
Fuel use6.3 gal/hour
23.8 l/hour
Power at rated PTO speed88.13 hp
65.7 kW
Fuel use5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power79.65 hp
59.4 kW
Fuel use6.1 gal/hour
23.1 l/hour
Gear 8 used for power test.
Max pull10,216 lbs
4633 kg
Gear 4 used for pull test.
