Long 510 Tests


Long 510 tractor photo
1979 - 1990
Utility tractor
UTB/Universal built
Tractor Tests
NTTL 1415: diesel 8-speed 2WD
NTTL 1416: diesel 8-speed 4WD
Nebraska Tractor Test 1415

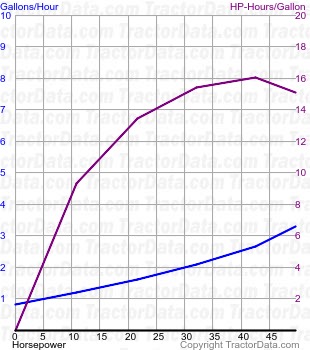

510 fuel use from test 1415
Nebraska Tractor Test 1415
Diesel 8-speed 2WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1415 file
PTO performance
Power at rated engine speed49.15 hp
36.7 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed46.91 hp
35.0 kW
Fuel use3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power41.75 hp
31.1 kW
Fuel use3.2 gal/hour
12.1 l/hour
Gear 5 used for power test.
Max pull6040 lbs
2739 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1416

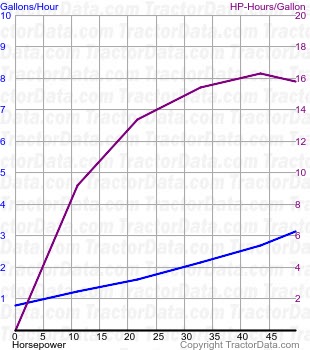

510 fuel use from test 1416
Nebraska Tractor Test 1416
Diesel 8-speed 4WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1416 file
PTO performance
Power at rated engine speed49.35 hp
36.8 kW
Fuel use3.1 gal/hour
11.7 l/hour
Power at rated PTO speed46.41 hp
34.6 kW
Fuel use2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power40.01 hp
29.8 kW
Fuel use3.1 gal/hour
11.7 l/hour
Gear 5 used for power test.
Max pull5635 lbs
2556 kg
Gear 2 used for pull test.
