| | 1980 - 1990 |
| Utility tractor | | UTB/Universal built |
|
| Engine Detail |
| UTB/Universal |
| diesel |
| 2-cylinder |
| liquid-cooled |
| Displacement | 109.7 ci
1.8 L
|
| Bore/Stroke | 4.02x4.33 inches
102 x 110 mm
|
| Fuel system | direct injection
|
| Air cleaner | oil bath
|
| Compression | 17:1
|
| Rated RPM | 2400
|
| Idle RPM | 600-2550
|
| Firing order | 1-2
|
| Starter volts | 12
|
| Coolant capacity | 8.5 qts
8.0 L
|

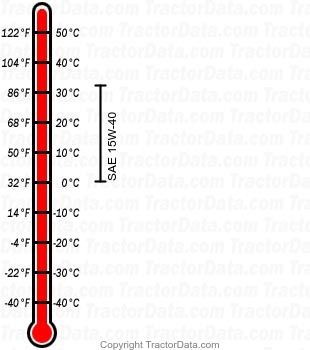

| Engine Oil |
|
| Oil capacity | 4.5 qts
4.3 L
|
| Oil change | 120 h
|
