Tractors > John Deere > 2040

John Deere 2040



John Deere 2040 tractor photo
1979 - 1987
Utility tractor
Series map:
1840
2040
52.2kw
52.2kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
The European-market John Deere 2040 was unrelated to the earlier North American 2040, being closer to the American 50-series tractors.
John Deere 2040 Engine
John Deere 3.9L 4-cyl diesel
Engine details ...
John Deere 2040 Transmissions
8-speed partially synchronized
16-speed
Transmission details ...
John Deere 2040 Power
Engine70 hp
52.2 kW
PTO (claimed)61 hp
45.5 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic disc brakes
Open operator station. Cab optional. SoundGard (SG2) cab available after 1981.
Photos
No photos of the John Deere 2040 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel25.1 gal
95.0 L
Hydraulic system14.5 gal
54.9 L
Hydraulics
Typeclosed center
Capacity14.5 gal
54.9 L
Pressure2466 psi
170.0 bar
Pump flow12.42 gpm
47.0 lpm
Tractor hitch
Rear TypeII
Rear lift6768 lbs
3069 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic
Rear PTO Type540
 1000 OptOptional
Engine RPM540@2400
Dimensions & Tires
2WD Wheelbase89.7 inches
227 cm
4WD Wheelbase90 inches
228 cm
Weight6536 to 7771 pounds
Front tire7.50-18
2WD Rear tire13.6/12-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
Battery AH55
References

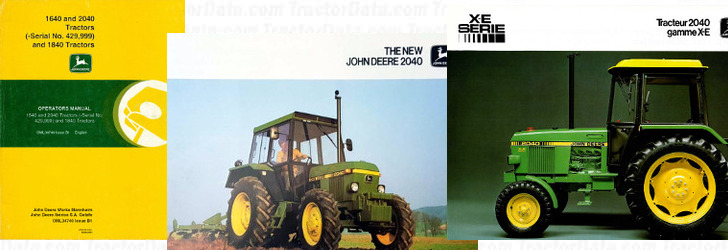

2040 references literature
Operator's Manual 1640, 1840 and 2040 Tractors published by John Deere
The New 2040 published in 1979, by John Deere
Tracteur 2040 gamme X-E published in 1984, by John Deere
