John Deere 2040 Transmission


John Deere 2040 tractor photo
1979 - 1987
Utility tractor
Series map:
1840
2040
52.2kw
52.2kw
Transmission options
8-speed partially synchronized
16-speed
Transmission
Typepartially synchronized
Gears8 forward and 4 reverse
Oil capacity58.1 qts
55.0 L
Four synchronized gears in two ranges (low/high) plus reverse range.

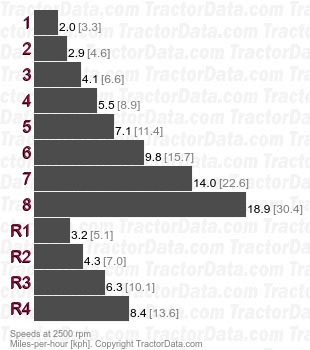

Speeds
With 13.6/12-38 rear tires.
2040  partially synchronized speeds
Transmission
Gears16 forward and 8 reverse
Hydraulically-shifted high-low added to base transmission.

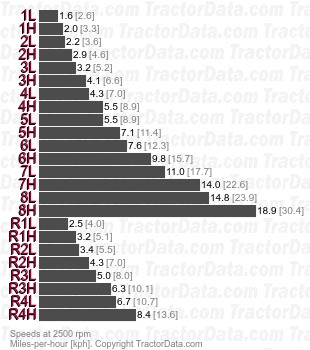

Speeds
With 13.6/12-38 rear tires.
2040   speeds
