John Deere 5105M Engine


John Deere 5105M tractor photo
2008 - 2011
5M Series
Utility tractor
Series map:
5095M
5105M
95.0hp
105.0hp
Engine Detail
John Deere PowerTech E 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier 3
Power105 hp
78.3 kW
Air cleanerdry
Rated RPM2200
Torque420 lb-ft
569.5 Nm
Torque RPM1400
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

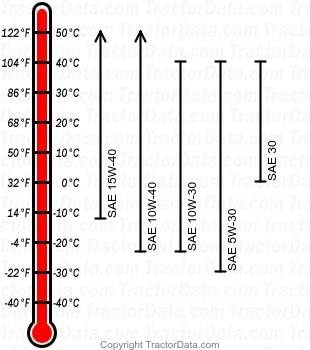

5105M diesel engine oil chart
Oil capacity8.8 qts
8.3 L
