John Deere 5095M Transmission


John Deere 5095M tractor photo
2008 - 2011
5M Series
Utility tractor
Series map:
5085M
5095M
5105M
85.0hp
95.0hp
105.0hp
Transmission options
16-speed partially synchronized
12-speed partially synchronized
16-speed partially synchronized with power shuttle
32-speed
Transmission
TransmissionSyncReverser
Typepartially synchronized
Gears16 forward and reverse
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.
Speeds
With 16.9-30 rear tires.
5095M SyncReverser partially synchronized speeds
Transmission
TransmissionSyncShuttle Plus
Typepartially synchronized
Gears12 forward and 4 reverse
Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.
Speeds
With 16.9-30 rear tires.

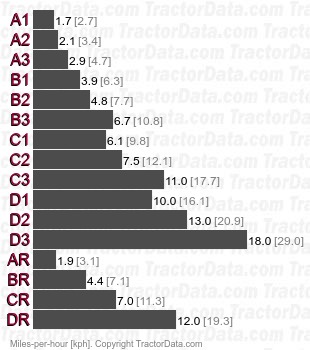

5095M SyncShuttle Plus partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepartially synchronized with power shuttle
Gears16 forward and reverse
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.
Speeds
With 16.9-30 rear tires.

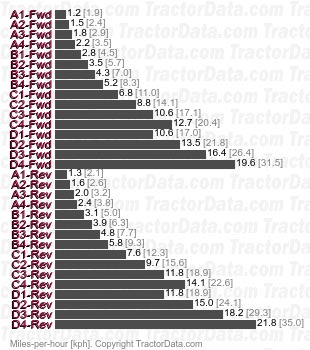

5095M PowrReverser partially synchronized with power shuttle speeds
Transmission
TransmissionPowrReverser Plus
Gears32 forward and 16 reverse
Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.
