John Deere 5085M

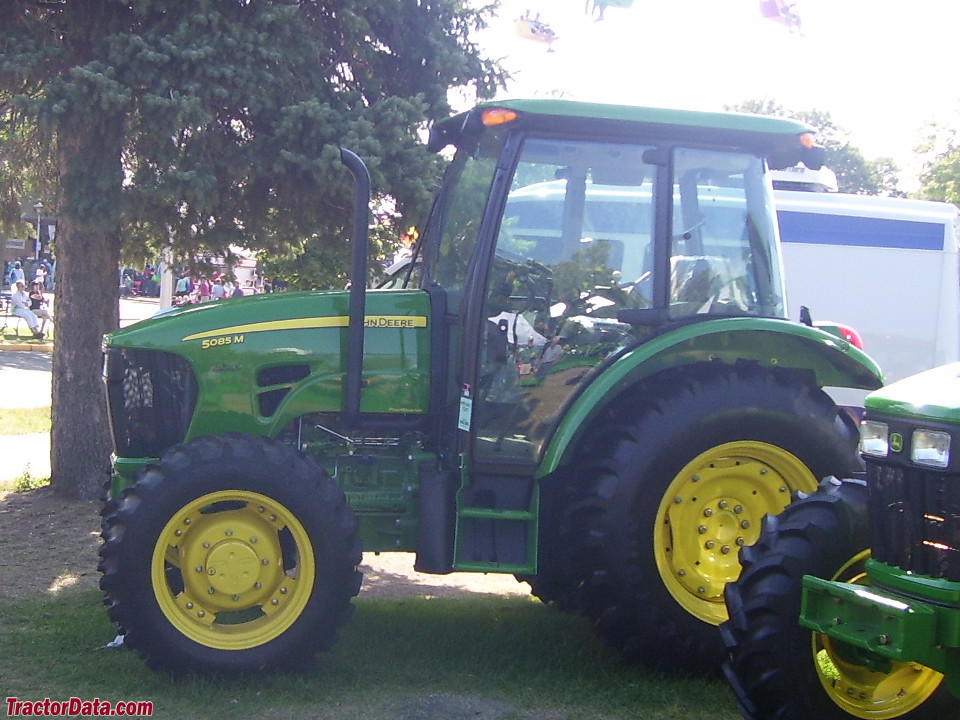

John Deere 5085M tractor photo
2008 - 2018
Model year
5M Series
Utility tractor
Series map:
5075M
5085M
5095M
75.0hp
85.0hp
95.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price$41,671 (2WD ROPS)
 $52,340 (4WD cab)
John Deere 5085M Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 5085M Transmissions
16-speed partially synchronized
12-speed partially synchronized
16-speed partially synchronized with power shuttle
32-speed
Transmission details ...
John Deere 5085M Power
Engine85 hp
63.4 kW
PTO (claimed)70 hp
52.2 kW
PTO (tested)74.07 hp
55.2 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Final drivesinboard planetary
Differential lockshift-on-the-move electro-hydraulic rear differential lock
Steeringhydrostatic power
Hydraulic wet disc brakes
Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.
Capacity
Fuel30.3 gal (ROPS)
114.7 L
 40.7 gal (cab)
154.0 L
Hydraulic system11.9 gal
45.0 L
Front hubs0.84 qts (each)
0.8 L
Front diff.5.3 qts
5.0 L
Hydraulics
Typeopen center
Capacity11.9 gal
45.0 L
Pressure2828 psi
195.0 bar
Valves0, 2 or 3 (rear)
 0, 2 or 3 (mid)
Pump flow18.4 gpm
69.6 lpm
Total flow24.7 gpm
93.5 lpm
Oil type
-10oF [-23oC] : HY-GARD
-10oF [-23oC] : JDM J20C
10o↔104oF [-12o↔40oC]   : BIO HY-GARD JDM 20D
Steering flow6.3 gpm
23.8 lpm
Steering press.1922 psi
132.5 bar
Tractor hitch
Rear TypeII/I
Rear lift (at 24"/610mm)3,595 lbs
1630 kg
 4,498 lbs (optional)
2040 kg
Power Take-off (PTO)
Rear PTOindependent electrohydraulic
Rear PTO Type540/540E
 540/540E/1000 (optional)
Dimensions & Tires
Weight6393 to 8000 pounds
Front tire7.5-16
Rear tire16.9-30
Full dimensions and tires ...
5085M Serial Number Location

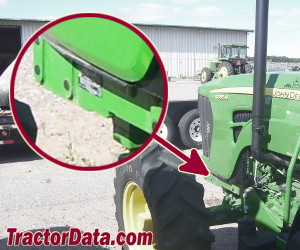

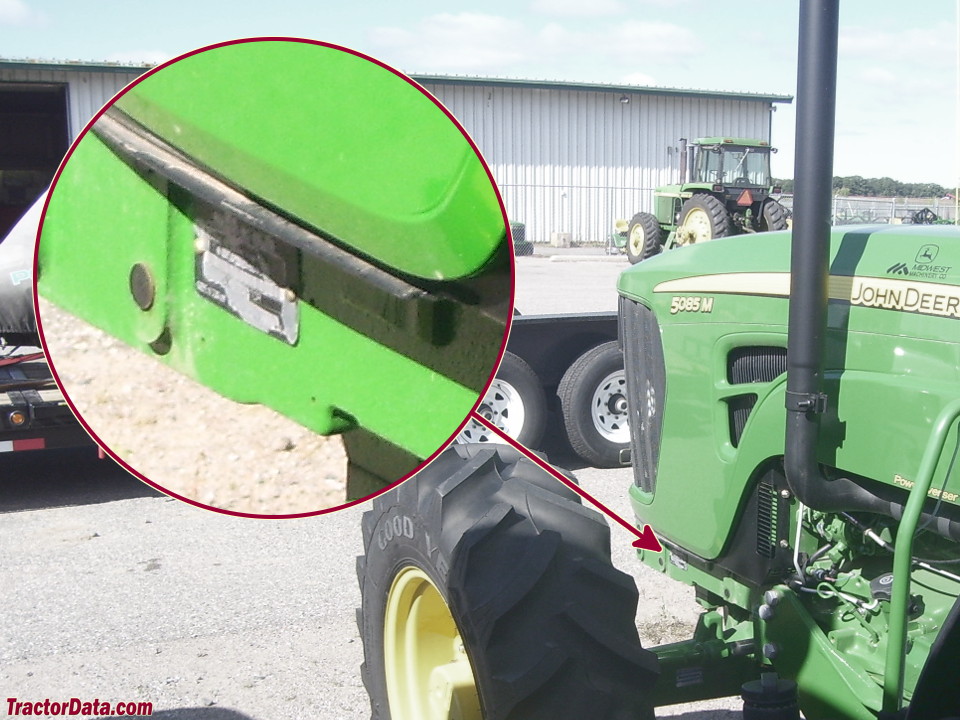

John Deere 5085M serial number location
Tractor frame on front left side.
Electrical
Groundnegative
Charging systemalternator
Charging amps70 (ROPS)
 90 (cab)
 120 (optional)
Battery CCA925
Battery volts12
Battery Group31
References
5085M references literature
New 5M Series published in 2009, by John Deere
5M Series published in 2011, by John Deere
