John Deere 5085M Engine


John Deere 5085M tractor photo
2008 - 2018
Model year
5M Series
Utility tractor
Series map:
5075M
5085M
5095M
75.0hp
85.0hp
95.0hp
Engine Detail
John Deere PowerTech M 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier 3
Power85 hp
63.4 kW
Air cleanerdry
Rated RPM2200
Torque331 lb-ft
448.8 Nm
Torque RPM1600
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

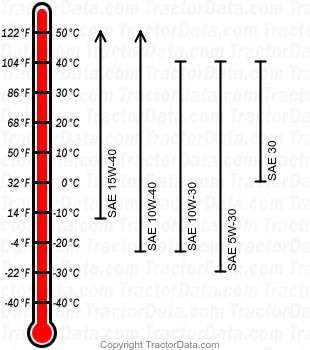

5085M diesel engine oil chart
Oil capacity8.8 qts
8.3 L
