John Deere 5075M Transmission
|
|
| Transmission options | |
| 16-speed partially synchronized | |
| 12-speed partially synchronized | |
| 16-speed partially synchronized with power shuttle | |
| 32-speed |
| Transmission | |
| Transmission | SyncReverser |
| Type | partially synchronized |
| Gears | 16 forward and reverse |
| Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges. | |

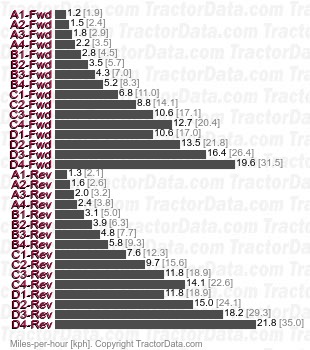

| Speeds | |
| With 16.9-30 rear tires. | |
|
| Transmission | |
| Transmission | SyncShuttle Plus |
| Type | partially synchronized |
| Gears | 12 forward and 4 reverse |
| Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range. | |
| Speeds | |
| With 16.9-30 rear tires. | |
|
| Transmission | |
| Transmission | PowrReverser |
| Type | partially synchronized with power shuttle |
| Gears | 16 forward and reverse |
| Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges. | |
| Speeds | |
| With 16.9-30 rear tires. | |
|
| Transmission | |
| Transmission | PowrReverser Plus |
| Gears | 32 forward and 16 reverse |
| Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges. | |
