John Deere 5065M Engine


John Deere 5065M tractor photo
2008 - 2012
Model year
5M Series
Utility tractor
Series map:
5065M
5075M
65.0hp
75.0hp
Engine Detail
John Deere PowerTech 5030
turbocharged diesel
5-cylinder
liquid-cooled
Displacement186 ci
3.0 L
Bore/Stroke3.385x4.134 inches
86 x 105 mm
Power65 hp
48.5 kW
Air cleanerdry
Rated RPM2200
Torque270 lb-ft
366.1 Nm
Torque RPM1400
Starter volts12
Coolant capacity10.4 qts
9.8 L
Engine Oil

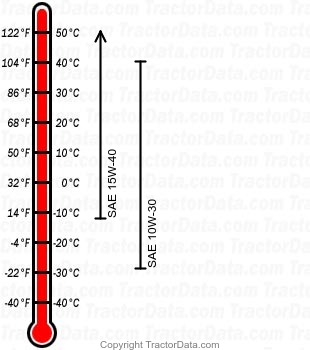

5065M diesel engine oil chart
Oil capacity10.4 qts
9.8 L
