Tractors > John Deere > 6140D

John Deere 6140D Engine



John Deere 6140D tractor photo
2008 - 2016
Model year
6D Series
Utility tractor
Series map:
6130D
6140D
129.8hp
137.8hp
Engine Detail
John Deere 4045H PowerTech E
intercooled turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.20x5.00 inches
107 x 127 mm
EmissionsTier 3
Rated Power (gross)137.8 hp
102.8 kW
Fuel systemDenso electronic high-pressure common rail
Compression19:1
Rated RPM2100
Idle RPM900-2200
Torque387 lb-ft
524.8 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Coolant capacity17.4 qts
16.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

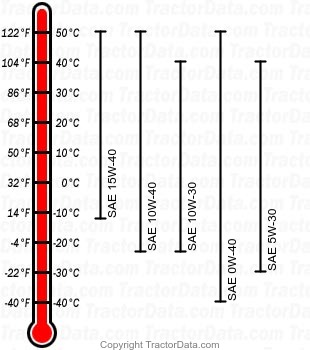

6140D diesel engine oil chart
Oil capacity13 qts
12.3 L
Oil change250 h
 500 h (JD TorqGARD oil)
