John Deere 6130D



John Deere 6130D tractor photo
2008 - 2016
Model year
6D Series
Utility tractor
Series map:
6115D
6130D
6140D
118.4hp
129.8hp
137.8hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Saltillo, Mexico
Original price$53,639 (2011)
John Deere 6130D Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6130D Transmissions
9-speed partially synchronized with power shuttle
9-speed partially synchronzied
Transmission details ...
John Deere 6130D Power
Engine (gross)129.8 hp
96.8 kW
PTO (claimed)105 hp
78.3 kW
Drawbar (tested)91.70 hp
68.4 kW
PTO (tested)109.64 hp
81.8 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Independent mechanical wet disc brakes
Folding 2-post ROPS or cab with heat and A/C
Photos
No photos of the John Deere 6130D are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel41.7 gal
157.8 L
Hydraulic system15.3 gal
57.9 L
Front axle6.9 qts
6.5 L
Front hubs2.1 qts (each)
2.0 L
Hydraulics
Typeopen center
Capacity15.3 gal
57.9 L
Pressure2830 psi
195.1 bar
Valves2 to 3
Pump flow17.6 gpm
66.6 lpm
Steering flow6.9 gpm
26.1 lpm
Tractor hitch
Rear TypeII
Controlmechanical lower link
Rear lift (at 24"/610mm)6,800 lbs
3084 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchdry disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@2100
 1000@2100
Dimensions & Tires
Wheelbase92.5 inches
234 cm
Weight8730 to 9920 pounds
Front tire14.9-24
Rear tire18.4-34
Full dimensions and tires ...
John Deere 6130D attachments
front-end loader
Attachment details ...

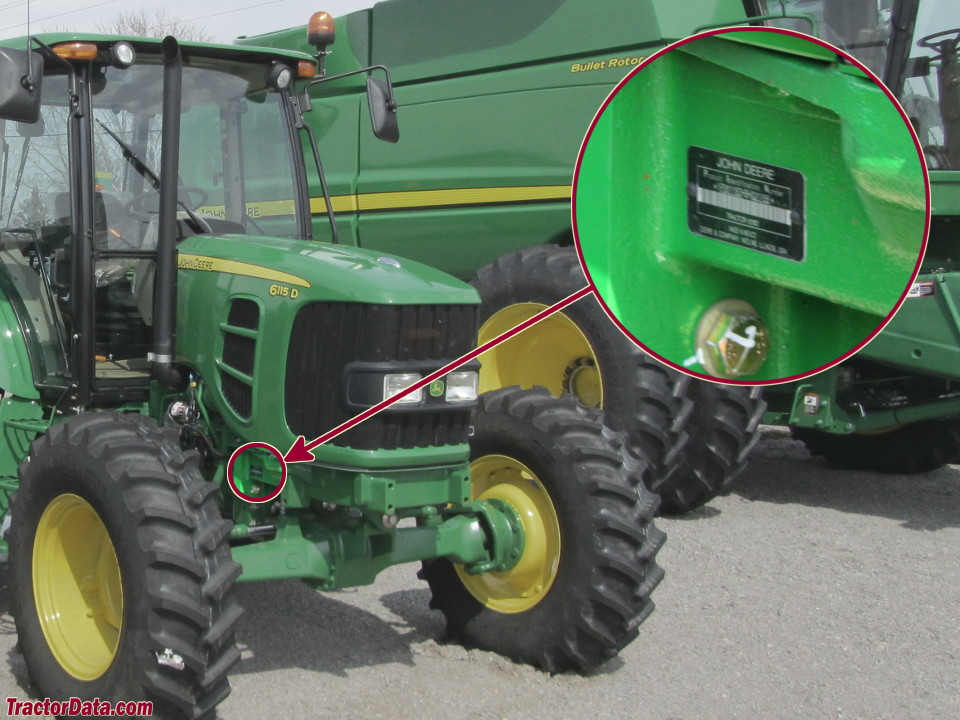

6130D Serial Number Location
John Deere 6130D serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps70 (ROPS)
 90 (cab)
Battery CCA925
Battery volts12
Battery AH180
Battery Group31
References
6130D references literature
All-New 6D Series Tractors published in 2008, by John Deere
