Tractors > John Deere > 6115D

John Deere 6115D Engine



John Deere 6115D tractor photo
2008 - 2016
Model year
6D Series
Utility tractor
Series map:
6100D
6115D
6130D
98.9hp
118.4hp
129.8hp
Engine Detail
John Deere 4045H PowerTech E
intercooled turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.20x5.00 inches
107 x 127 mm
EmissionsTier 3
Rated Power (gross)118.4 hp
88.3 kW
Fuel systemDenso electronic high-pressure common rail
Air cleanertwo paper elements
Compression19:1
Rated RPM2100
Idle RPM900-2200
Torque355 lb-ft
481.4 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Coolant capacity17.4 qts
16.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

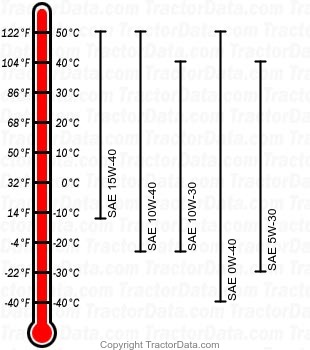

6115D diesel engine oil chart
Oil capacity15.85 qts
15.0 L
Oil change250 h
 500 h (JD TorqGARD oil)
