John Deere 5083E

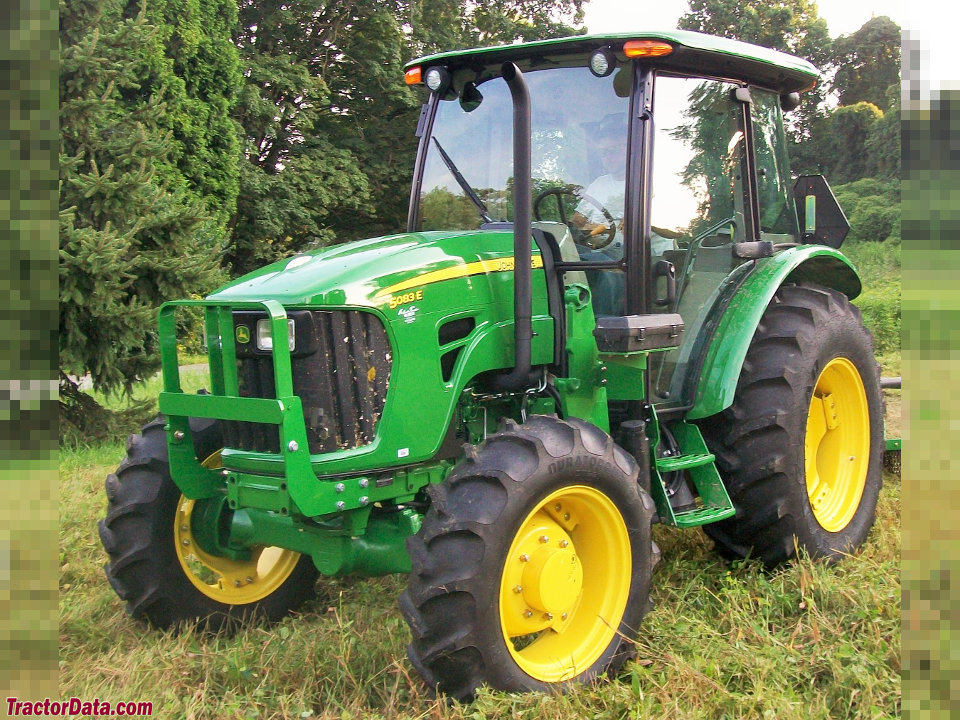

John Deere 5083E tractor photo
2008 - 2012
Model year
5E Limited Series
Utility tractor
Series map:
5075E
5083E
5093E
75.0hp
83.0hp
93.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price$41,361 (2011)
Variants
5083Eutility chassis
5083ENnarrow chassis
John Deere 5083E Engine
John Deere 4.5L 4-cyl diesel
Fuel tank33.5 gal
126.8 L
Engine details ...
John Deere 5083E Power
Engine (gross)83 hp
61.9 kW
PTO (claimed)65 hp
48.5 kW
PTO (tested)69.30 hp
51.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesplanetary
Differential lockrear standard
Steeringhydrostatic power
Independent hydraulic wet disc brakes
Cab standard with heat and air-conditioning.
Hydraulics
Typeopen center
Pressure2828 psi
195.0 bar
Rear valves1 to 3
Mid valves2 (optional)
Pump flow15.9 gpm
60.2 lpm
Total flow22.5 gpm
85.2 lpm
Steering flow6.6 gpm
25.0 lpm
Steering press.1900 psi
131.0 bar
Tractor hitch
Rear Type2/1
Controlposition control and top-link draft sensing
Rear lift (at 24"/610mm)3,213 lbs
1457 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchmechanical
Rear PTO Type540/540E
 540/1000 (optional)
Dimensions & Tires
Wheelbase85.8 inches
217 cm
Weight7,200 lbs
3265 kg
Front tire11.2-24
Rear tire16.9-30
Full dimensions and tires ...
5083E Serial Number Location
John Deere 5083E serial number location
Serial number plate on the left side of tractor above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
 120 (optional)
Battery CCA750
Battery volts12
References
5083E references literature
New 5 Series Utility Tractors published in 2009, by John Deere
5 Series published in 2009, by John Deere
