John Deere 5075E Engine


John Deere 5075E tractor photo
2008 - 2025
Model year
5E Series
Utility tractor
Series map:
5065E
5075E
5083E
65.0hp
75.0hp
83.0hp
Engine Detail
John Deere PowerTech 3029H
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Rated Power (gross)75 hp
55.9 kW
Air cleanertwo paper elements
Pre-heatingcoolant heater (optional)
 heavy-duty air pre-heater (optional)
Compression17.8:1
Rated RPM2400
Idle RPM800-2600
Operating RPM1800-2400
Torque195.5 lb-ft
265.1 Nm
Torque RPM1700
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

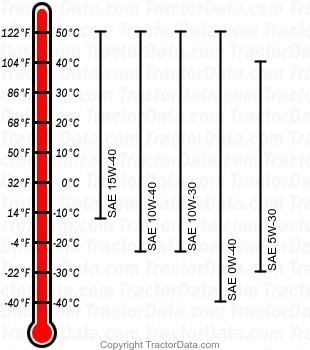

5075E diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
