Tractors > John Deere > 5065E

John Deere 5065E Engine



John Deere 5065E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5055E
5065E
5075E
55.0hp
65.0hp
75.0hp
Engine Detail
John Deere PowerTech 3029H
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Rated Power (gross)65 hp
48.5 kW
Air cleanertwo paper elements
Pre-heatingcoolant heater (optional)
 heavy-duty air pre-heater (optional)
Rated RPM2400
Idle RPM800-2600
Operating RPM1800-2400
Torque177 lb-ft
240.0 Nm
Torque RPM1700
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

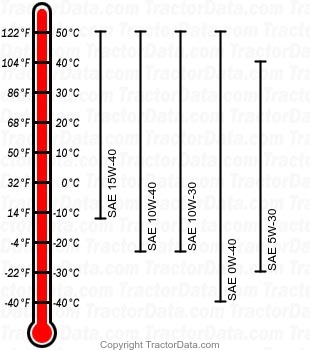

5065E diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
