John Deere 5055E Transmission


John Deere 5055E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5045E
5055E
5065E
45.0hp
55.0hp
65.0hp
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Oil capacity41.2 qts
39.0 L
Oil type
JD Hy-Gard
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shuttle shift between 2 and R in all ranges. Forward gear shifts in-range are synchronized. Shifts between ranges are not synchronized. The SyncShuttle is standard equipment on four-wheel drive models.tran1fwd

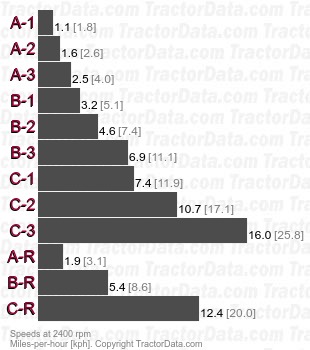

Speeds
With 13.6-28 rear tires
5055E SyncShuttle partially synchronized speeds
