John Deere 5055E Engine


John Deere 5055E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5045E
5055E
5065E
45.0hp
55.0hp
65.0hp
Engine Detail
John Deere PowerTech 3029H
turbocharged diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Rated Power (gross)55 hp
41.0 kW
Air cleanertwo paper elements
Rated RPM2400
Idle RPM800-2500
Operating RPM1700-2300
Torque158.6 lb-ft
215.1 Nm
Torque RPM1700
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

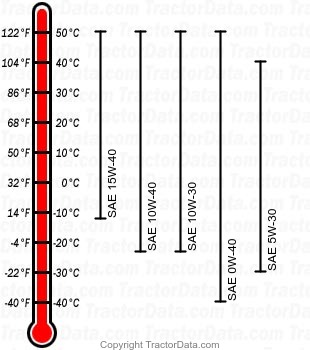

5055E diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
