John Deere 5045E
| | 2008 - 2022 |
|
| 5E Series | | Utility tractor |
|
Series map:
5045E
5055E
45.0hp
55.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Pune, Maharashtra, India |
| John Deere 5045E Power |
| Engine (gross) | 45 hp
33.6 kW
|
| PTO (claimed) | 37 hp
27.6 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Folding 2-post ROPS |
| Capacity |
| Fuel | 18 gal
68.1 L
|
| Hydraulic system | 10.3 gal
39.0 L
|
| Front axle | 4.8 qts
4.5 L
|
| Front hubs | 0.85 qts (each)
0.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 10.3 gal
39.0 L
|
| Pressure | 2828 psi
195.0 bar
|
| Rear valves | 1 or 2
|
| Mid valves | 2
|
| Pump flow | 11.4 gpm
43.1 lpm
|
| Total flow | 18.2 gpm
68.9 lpm
|
| Steering flow | 6.8 gpm
25.7 lpm
|
| Steering press. | 1958 psi
135.0 bar
|
| Tractor hitch |
| Rear Type | 2
|
| Control | position and top-link draft control
|
| Rear lift (at 24"/610mm) | 3,192 lbs
1447 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | mechanical
|
| Rear PTO Type | 540
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 623
|
| Battery volts | 12
|

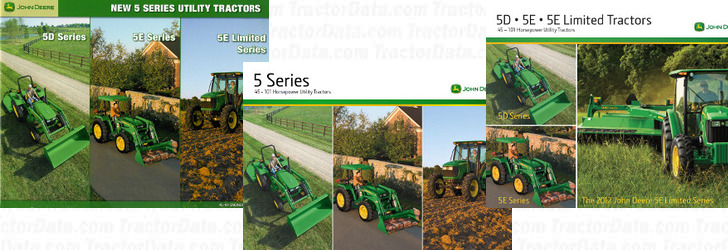

| References |
 |
| New 5 Series Utility Tractors published in 2009, by John Deere |
| 5 Series published in 2009, by John Deere |
| 5D - 5E - 5E Limited Tractors published in 2012, by John Deere |
