John Deere 6800 Transmission


John Deere 6800 tractor photo
1993 - 1997
6000 Series
Row-Crop tractor
Series map:
6600
6800
6900
82.0kw
89.5kw
96.9kw
Transmission options
16-speed partial power shift
20-speed partial power shift
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchwet disc
Four power shift gears in four ranges, with power shuttle.
Shift Pattern
John Deere 6800 transmission controls
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears20 forward and reverse
Clutchwet disc
Four power shift gears (1-4) in five ranges (A-E) with power shuttle. Available in 30 kph and 40 kph versions depending on market.

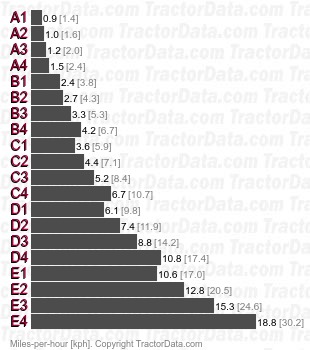

Speeds
With 18.4-38 rear tires.
6800 PowrQuad partial power shift speeds
