Tractors > Kubota > MX4700

Kubota MX4700

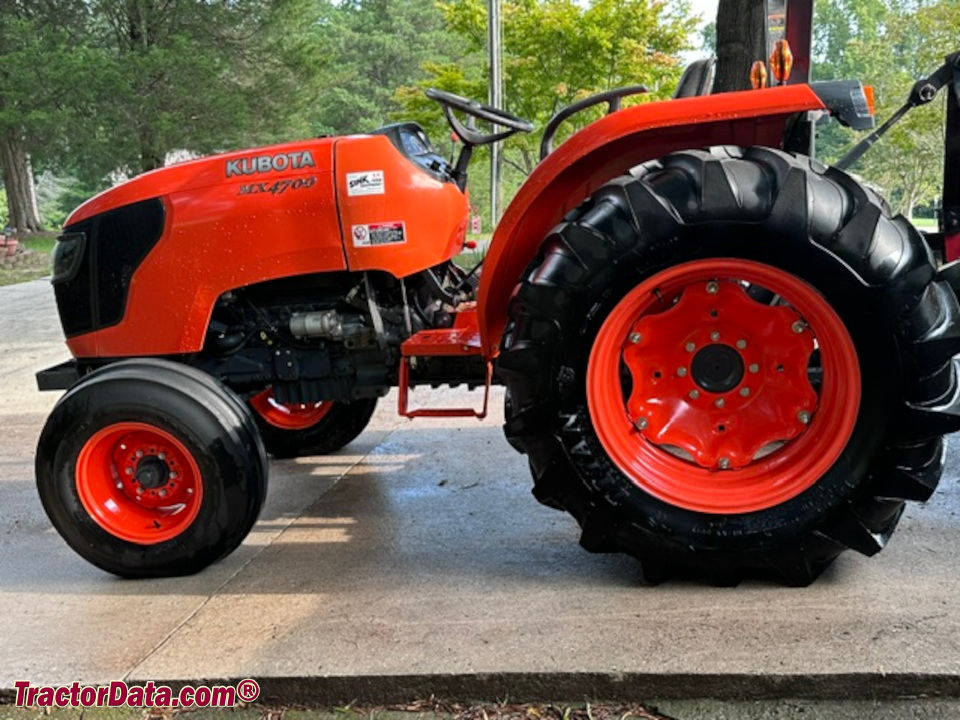

Kubota MX4700 tractor photo
2009 - 2014
MX Series
Utility tractor
Series map:
MX4700
MX5100
48.2hp
52.2hp
Production
ManufacturerKubota
Utility tractor
Original price was $15,989 in 2011
Variants
MX4700F2WD gear
MX4700DT4WD gear
MX4700HST4WD hydro
Kubota MX4700 Engine
Kubota 2.4L 4-cyl diesel
Engine details ...
Kubota MX4700 Transmissions
8-speed partially synchronized
hydrostatic
Transmission details ...
Kubota MX4700 Power
Engine (gross)48.2 hp
35.9 kW
Engine (net)46 hp
34.3 kW
PTO (claimed)39.5 hp (gear)
29.5 kW
 38 hp (hydro)
28.3 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lockrear standard
Steeringhydrostatic power
Mechanical wet disc brakes
Two-post foldable ROPS. Optional canopy.
Photos
No photos of the Kubota MX4700 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel12.7 gal
48.1 L
Hydraulic system11.6 gal
43.9 L
Front axle9.5 qts
9.0 L
Hydraulics
Typeopen center
Capacity11.6 gal
43.9 L
Valves0 to 3
Pump flow9.5 gpm
36.0 lpm
Total flow14.4 gpm
54.5 lpm
Steering flow4.9 gpm
18.5 lpm
Tractor hitch
Rear TypeII/I
Rear lift (at ends)2,870 lbs
1301 kg
Rear lift (at 24"/610mm)2,310 lbs
1047 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2700
Dimensions & Tires
Wheelbase74.6 inches
189 cm
Weight3362 to 3770 pounds
Front tire7.5L-15
Rear tire14.9-26 (2WD)
Full dimensions and tires ...
Kubota MX4700 attachments
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA582
Battery volts12
