| | 1999 - 2002 |
| Grand L10 Series | | Compact Utility tractor |
|
Series map:
L4310
L4610
45.3hp
47.8hp
| Transmission options |
| 8-speed automatic fully synchronized |
| hydrostatic |
| 16-speed creeper |
| Transmission |

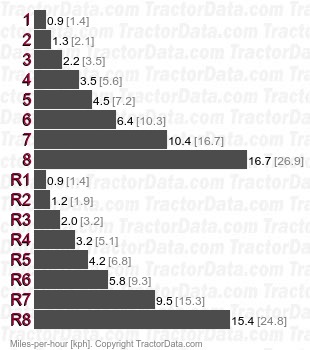

| Transmission | Glide Shift (GST)
|
| Type | automatic fully synchronized
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| The Glide Shift allows clutchless automatic shifting between gears. |
| Speeds |
|
| Transmission |

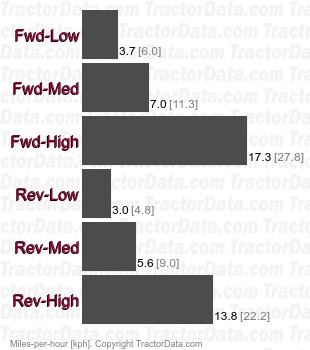

| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|
| Speeds |
|
| Transmission |

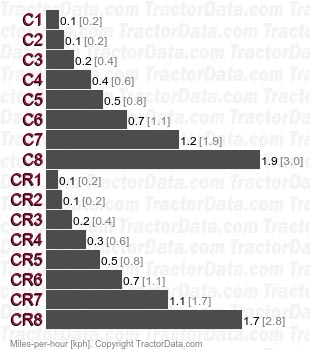

| Type | creeper
|
| Gears | 16 forward and reverse
|
| Optional creeper range available for the GST transmission. |
| Speeds |
|
