| | 2001 - 2008 |
| M Series | | Utility tractor |
|
Series map:
M4900
M5700
54.0hp
61.6hp
| Transmission options |
| 8-speed |
| 8-speed synchronized shuttle |
| 12-speed |
| Transmission |
| Gears | 8 forward and 4 reverse
|
| Oil capacity | 42.4 qts
40.1 L
|
| Transmission |
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Oil capacity | 42.4 qts
40.1 L
|
| Four synchronized gears in two range with synchronized shuttle. |

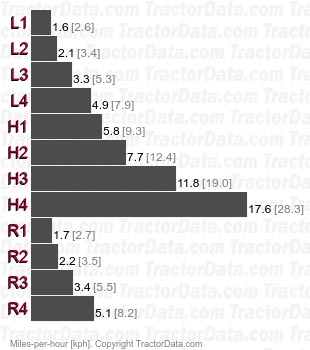

| Speeds |
|
| Transmission |
| Transmission | creeper
|
| Gears | 12 forward and reverse
|
