John Deere 5105ML Transmission


No photo available
2008 - ????
Orchard/Vineyard tractor
Transmission options
12-speed partially synchronized
16-speed partially synchronized power shuttle
Transmission
TransmissionJohn Deere SyncShuttle Plus
Typepartially synchronized
Gears12 forward and 4 reverse
Clutchwet
Oil capacity42 qts
39.7 L
Three speeds (1-3) plus reverse (R) in four ranges (A-D). Synchronized speed and directional shifting using the foot clutch. Tractor must be stopped to shift ranges.

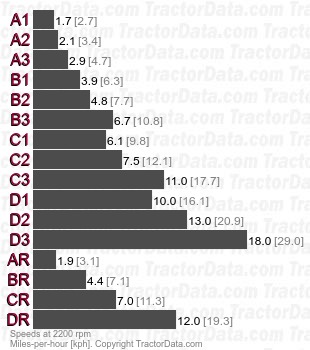

Speeds
With 16.9-30 rear tires.
5105ML SyncShuttle Plus partially synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepartially synchronized power shuttle
Gears16 forward and reverse
Clutchwet
Oil capacity42 qts
39.7 L
Four speeds (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle shifting using reverser lever. Speed shifts are synchronized using the foot clutch. Tractor must be stopped to shift ranges.

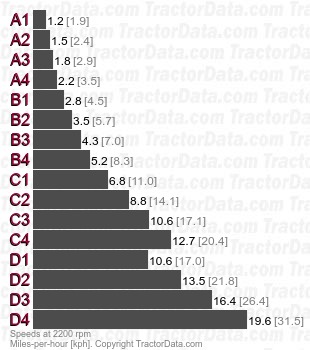

Speeds
With 16.9-30 rear tires.
5105ML PowrReverser partially synchronized power shuttle speeds
