J.I. Case 2294 Tests


J.I. Case 2294 tractor photo
1984
94 Series
Row-Crop tractor
Series map:
2094
2294
2394
127.0hp
154.0hp
197.0hp
Nebraska Tractor Test 1526

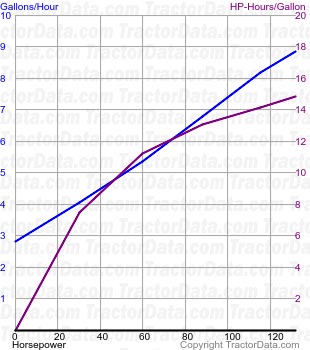

2294 fuel use from test 1526
Nebraska Tractor Test 1526
Diesel 12 speed 2WD
June 1 - 12, 1984
Link: Nebraska Tractor Test 1526 file
PTO performance
Power at rated engine speed131.97 hp
98.4 kW
Fuel use8.9 gal/hour
33.7 l/hour
Drawbar performance
Max power115.35 hp
86.0 kW
Fuel use8.8 gal/hour
33.3 l/hour
Gear 3-2 used for power test.
Max pull13,017 lbs
5904 kg
Gear 2-1 used for pull test.
