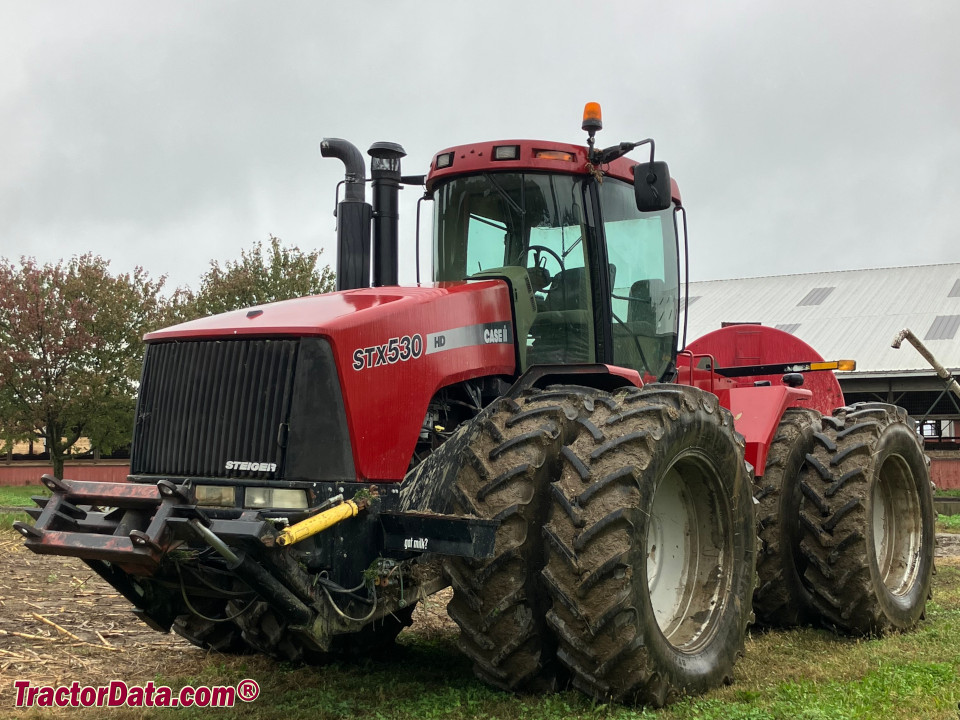

CaseIH STX530
| | 2006 |
| Steiger STX Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
STX480
STX530
480.0hp
530.0hp
| Production |
| Manufacturer | CaseIH
|
| Four-wheel Drive (4WD) tractor |
| Built in Fargo, North Dakota, USA |
| CaseIH STX530 Power |
| Engine | 530 hp
395.2 kW
|
| PTO (claimed) | 469 hp
349.7 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | inboard compound planetary
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating. |
| Photos |
| No photos of the CaseIH STX530 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | pressure flow compensated
|
| Valves | 4
|
| Pump flow | 42 gpm
159.0 lpm
|
| | 57 gpm (High capacity)
215.7 lpm
|
| | 94 gpm (TwinFlow)
355.8 lpm
|
| Tractor hitch |
| Rear Type | IVN
|
| Rear lift (at 24"/610mm) | 19620 lbs
8899 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Rear PTO Type | 1000 (1.75)
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| STX Series Steiger Tractors published in 2006, by CaseIH |
