Tractors > CaseIH > STX480

CaseIH STX480 Tests



CaseIH STX480 tractor photo
2006 - 2007
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX430
STX480
STX530
430.0hp
480.0hp
530.0hp
OCED Tractor Test 1910

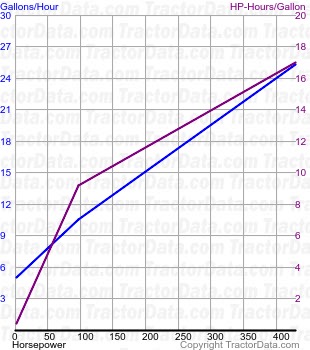

STX480 fuel use from test 578
OCED Tractor Test 1910
Diesel 16-speed 4WD
September 28 - October 24, 2007
Link: OCED Tractor Test 1910 file
PTO performance
Max power483.15 hp
360.3 kW
Fuel use26.9 gal/hour
101.8 l/hour
Power at rated engine speed429.00 hp
319.9 kW
Fuel use25.3 gal/hour
95.8 l/hour
Drawbar performance
Max power391.15 hp
291.7 kW
Fuel use25.2 gal/hour
95.4 l/hour
Gear 4 used for power test.
Max pull44623 lbs
20240 kg
Gear 3 used for pull test.
