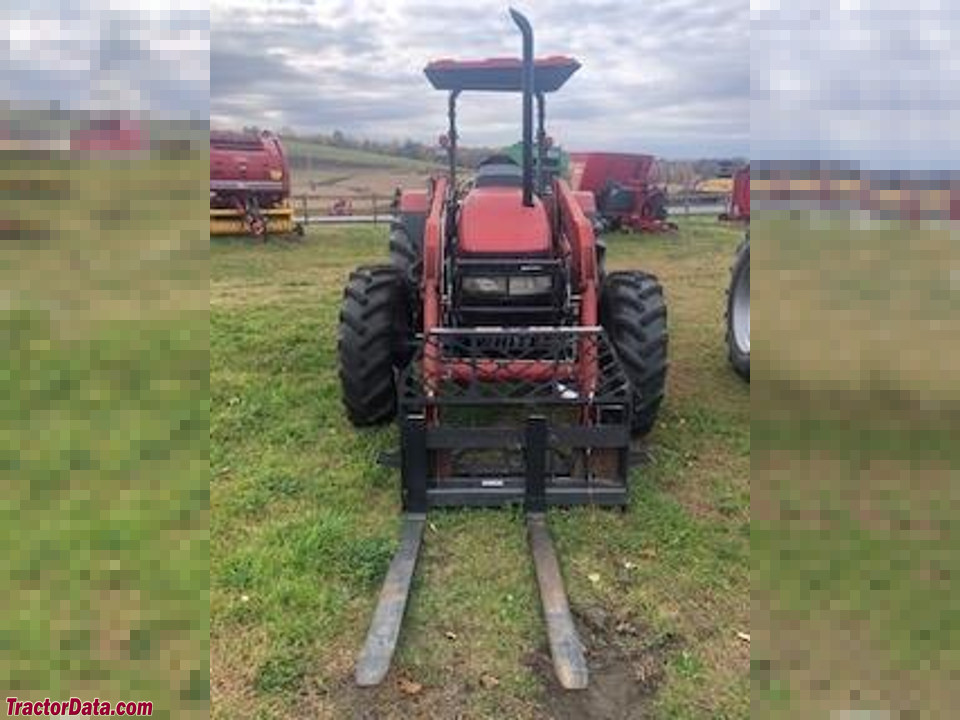

CaseIH JX80U
| | 2002 - 2003 |
| JXU Maxxima Series | | Utility tractor |
|
Series map:
JX80U
JX90U
74.0hp
84.0hp
| Production |
| Manufacturer | CaseIH
|
| Utility tractor |
| CaseIH JX80U Power |
| Engine (gross) | 74 hp
55.2 kW
|
| PTO (claimed) | 66 hp
49.2 kW
|
| Drawbar (tested) | 54.3 hp
40.5 kW
|
| PTO (tested) | 67.3 hp
50.2 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic front and rear
|
| Power steering |
| Independent hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 14.5 gpm
54.9 lpm
|
| Total flow | 20 gpm
75.7 lpm
|
| Steering flow | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | mechanical lower-link draft sensing
|
| Rear lift | 7900 lbs
3583 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 85
|
| Battery CCA | 960
|
| Battery volts | 12
|
