Tractors > CaseIH > STX440

CaseIH STX440 Tests



CaseIH STX440 tractor photo
2001
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX440
440.0hp
OCED Tractor Test 1784

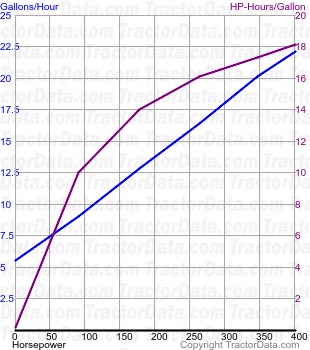

STX440 fuel use from test 336
OCED Tractor Test 1784
Diesel 16-speed 4WD
October 11, 2000 - October 19;2000,
Link: OCED Tractor Test 1784 file
PTO performance
Max power454.23 hp
338.7 kW
Fuel use22.8 gal/hour
86.3 l/hour
Power at rated engine speed400.64 hp
298.8 kW
Fuel use22.1 gal/hour
83.6 l/hour
Drawbar performance
Max power371.35 hp
276.9 kW
Fuel use21.8 gal/hour
82.5 l/hour
Gear 4 used for power test.
Max pull44,525 lbs
20196 kg
Gear 3 used for pull test.
