| | 2001 |
| Steiger STX Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
STX440
440.0hp
| Engine Detail |
| Cummins QSX15 |
| turbocharged aftercooled diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 912 ci
14.9 L
|
| Bore/Stroke | 5.394x6.654 inches
137 x 169 mm
|
| Power | 440 hp
328.1 kW
|
| Air cleaner | dual paper elements
|
| Compression | 16.5:1
|
| Rated RPM | 2000
|
| Torque | 1650 lb-ft
2237.4 Nm
|
| Torque RPM | 1400
|
| Starter volts | 12
|

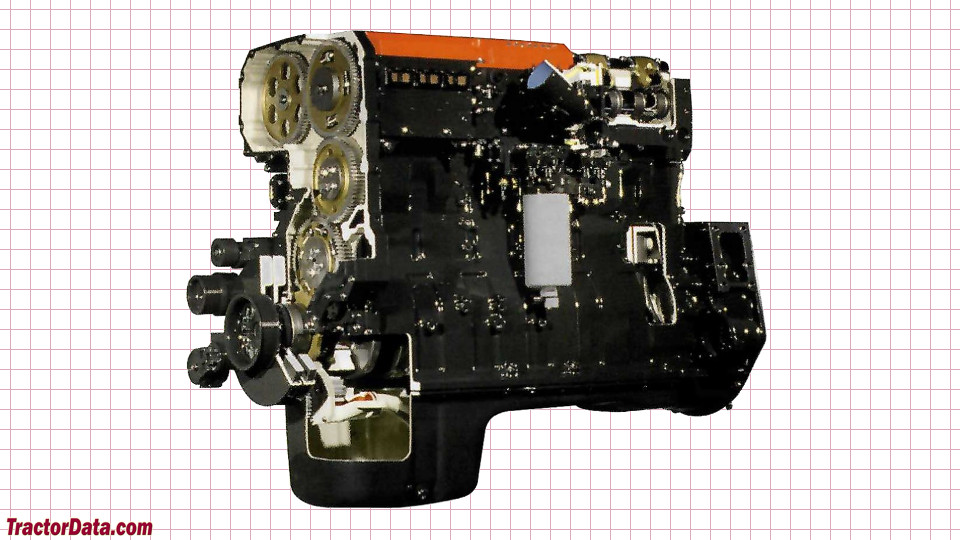

| CaseIH STX440 Engine |
 |
