Tractors > CaseIH > Steiger 535QT Quadtrac

CaseIH Steiger 535QT Quadtrac Tests

CaseIH Steiger 535QT Quadtrac tractor photo

2008 - 2010

Farm/Agricultural tractor

Series map:

Steiger 550 Quadtrac↑ 2011-2021

Steiger 485QT

Steiger 535QT

485.0hp

535.0hp

Steiger 530QT↓ 2007-2008

OCED Tractor Test 1911

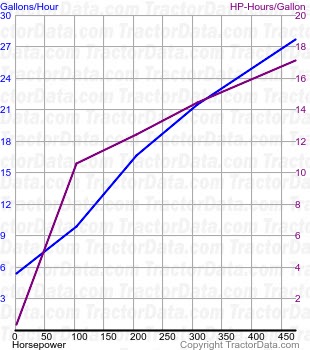

Steiger 535QT Quadtrac fuel use from test 579

OCED Tractor Test 1911
Diesel 16-speed crawler October 2 - 24, 2007 Link: OCED Tractor Test 1911 file
PTO performance
Max power	534.72 hp 398.7 kW
Fuel use	29.3 gal/hour 110.9 l/hour
Power at rated engine speed	473.65 hp 353.2 kW
Fuel use	27.7 gal/hour 104.8 l/hour
Power at rated PTO speed	501.68 hp 374.1 kW
Fuel use	28.2 gal/hour 106.7 l/hour
Drawbar performance
Max power	406.28 hp 303.0 kW
Fuel use	27.1 gal/hour 102.6 l/hour
Gear 4 used for power test.
Max pull	50,065 lbs 22709 kg
Gear 3 used for pull test.
