Tractors > CaseIH > Steiger 535

CaseIH Steiger 535 Engine



CaseIH Steiger 535 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 485
Steiger 535
485.0hp
535.0hp
Engine Detail
Cummins QSX15
turbocharged diesel
6-cylinder
liquid-cooled
Displacement915 ci
15.0 L
Bore/Stroke5.394x6.654 inches
137 x 169 mm
EmissionsTier 3
Power535 hp
398.9 kW
Maximum Power589 hp
439.2 kW
Compression17:1
Rated RPM2100
Starterelectric
Starter volts24
Engine Oil

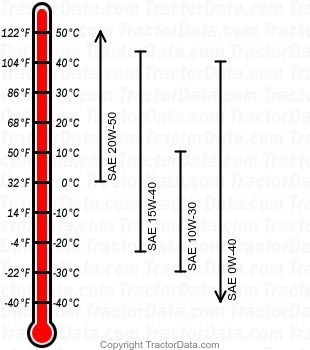

Steiger 535 diesel engine oil chart
Oil capacity52 qts
49.2 L
