CaseIH Steiger 485 Tests



CaseIH Steiger 485 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 435
Steiger 485
Steiger 535
435.0hp
485.0hp
535.0hp
OCED Tractor Test 1934A

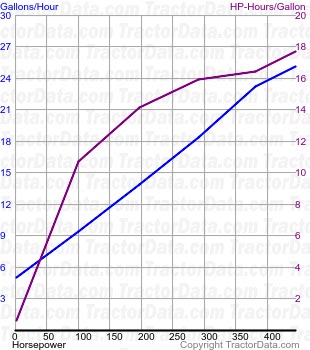

Steiger 485 fuel use from test 610
OCED Tractor Test 1934A
Diesel 16-speed 4WD
September 8 - 11, 2008
Link: OCED Tractor Test 1934A file
PTO performance
Max power498.35 hp
371.6 kW
Fuel use26.5 gal/hour
100.3 l/hour
Power at rated engine speed443.69 hp
330.9 kW
Fuel use25.1 gal/hour
95.0 l/hour
Drawbar performance
Max power400.38 hp
298.6 kW
Fuel use24.7 gal/hour
93.5 l/hour
Gear 6 used for power test.
Max pull43,815 lbs
19874 kg
Gear 3 used for pull test.
