Tractors > CaseIH > Steiger 435

CaseIH Steiger 435 Engine



CaseIH Steiger 435 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 385
Steiger 435
Steiger 485
385.0hp
435.0hp
485.0hp
Engine Detail
Iveco
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement786 ci
12.9 L
Bore/Stroke5.314x5.906 inches
135 x 150 mm
EmissionsTier 3
Power435 hp
324.4 kW
Maximum Power478 hp
356.4 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Starter volts24
Engine Oil

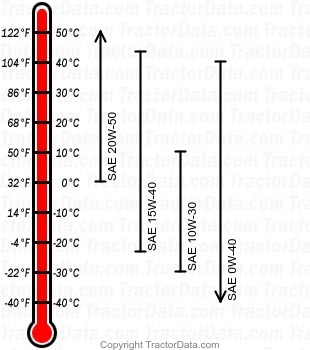

Steiger 435 diesel engine oil chart
Oil capacity32.8 qts
31.0 L
CaseIH Steiger 435 Engine

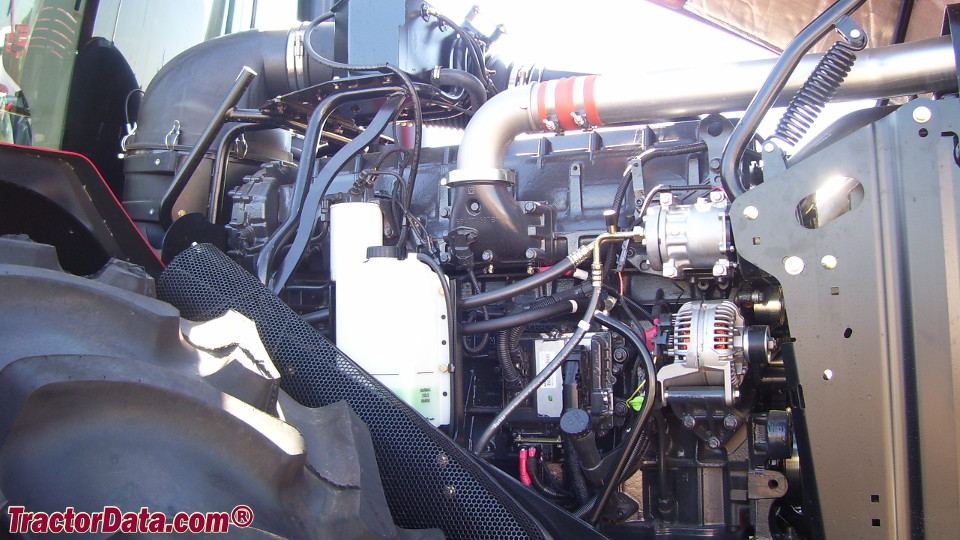

CaseIH Steiger 435 engine image
