Tractors > CaseIH > Steiger 385

CaseIH Steiger 385 Engine



CaseIH Steiger 385 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 335
Steiger 385
Steiger 435
335.0hp
385.0hp
435.0hp
Engine Detail
Iveco
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement786 ci
12.9 L
Bore/Stroke5.314x5.906 inches
135 x 150 mm
EmissionsTier 3
Power385 hp
287.1 kW
Maximum Power423 hp
315.4 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Starter volts24
Engine Oil

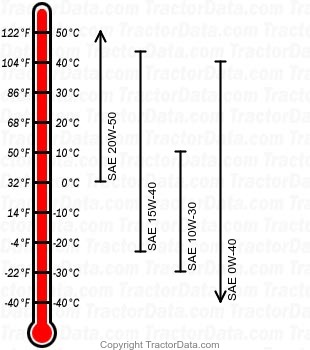

Steiger 385 diesel engine oil chart
Oil capacity32.8 qts
31.0 L
