Tractors > CaseIH > Steiger 335

CaseIH Steiger 335 Tests



CaseIH Steiger 335 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 335
Steiger 385
335.0hp
385.0hp
OCED Tractor Test 1907

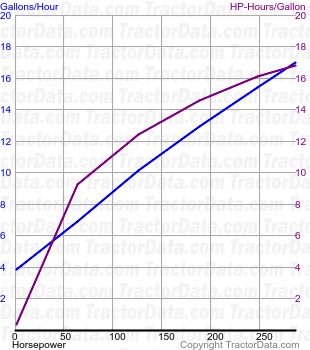

Steiger 335 fuel use from test 575
OCED Tractor Test 1907
Diesel 16-speed 4WD
September 19 - October 22, 2007
Link: OCED Tractor Test 1907 file
PTO performance
Max power323.31 hp
241.1 kW
Fuel use18.0 gal/hour
68.1 l/hour
Power at rated engine speed285.76 hp
213.1 kW
Fuel use17.0 gal/hour
64.3 l/hour
Drawbar performance
Max power258.63 hp
192.9 kW
Fuel use16.9 gal/hour
64.0 l/hour
Gear 5 used for power test.
Max pull31,197 lbs
14150 kg
Gear 3 used for pull test.
