John Deere 4930 Transmission


John Deere 4930 tractor photo
1978 - 1981
Row-Crop tractor
Series map:
4730
4930
87.2kw
119.3kw
Transmission options
16-speed partial power shift
8-speed full power shift
Transmission
TransmissionQuad-Range
Typepartial power shift
Gears16 forward and 6 reverse
Clutchhydraulic wet disc
Four gears (1-4) in four ranges (A-D). Power shift between pairs 1-2 and 3-4 in each range, with synchronized shift between 2-3. Two reverses in ranges A-C. Tractor must be stopped, and clutch used, to shift ranges. Power shift is provided hy a hydraulically-controlled planetary that provides an under-drive to each gear.
Speeds
With 24.5x32 rear tires.

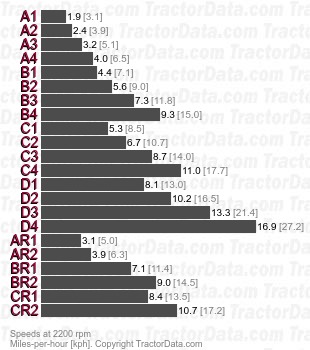

4930 Quad-Range partial power shift speeds
Shift Pattern
John Deere 4930 transmission controls
Transmission
TransmissionPower Shift
Typefull power shift
Gears8 forward and 4 reverse
Clutchhydraulic wet disc
Speeds

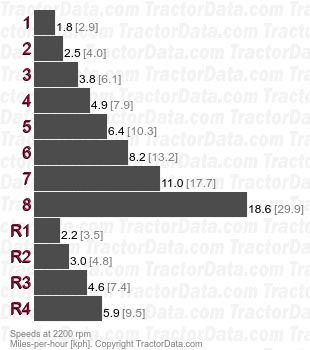

4930 Power Shift full power shift speeds
