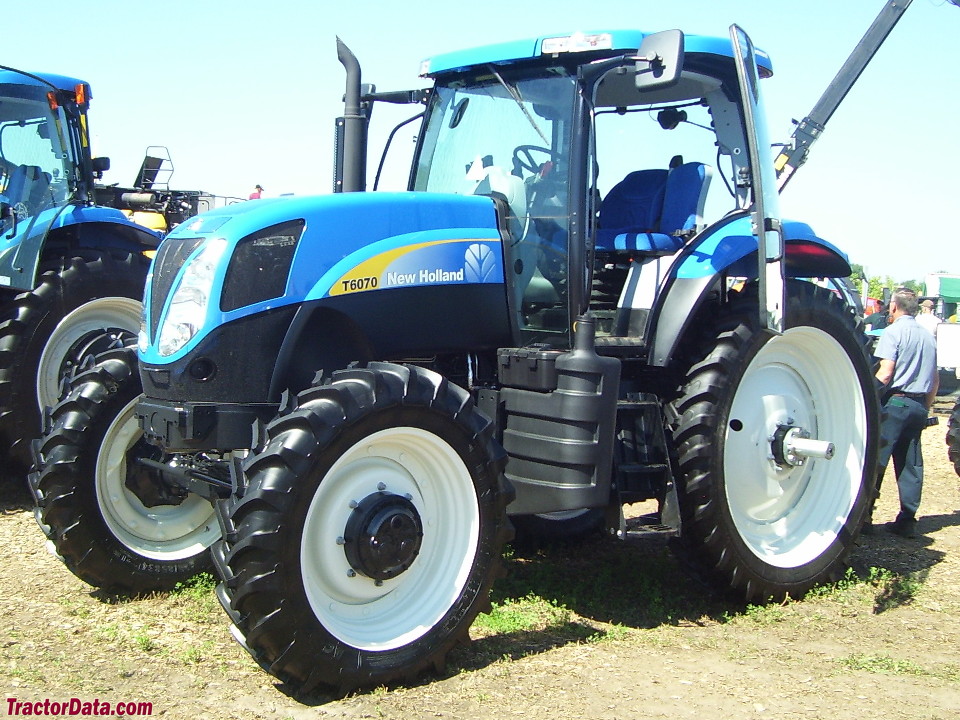

New Holland T6070 Elite
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Built in Basildon, England | |
| During official testing, the T6070 Elite was unable to lift the advertised 12,185 pounds on the three-point hitch to maximum height. Actual lift at maximum height was 11,355 pounds. | |
| Variants | |
| T6070 Plus | mid-level |
| T6070 Elite | premium |
| New Holland T6070 Elite Engine | |
| FPT 6.7L 6-cyl diesel | |
 Engine details ... |
| New Holland T6070 Elite Transmissions | |
| 16-speed partial power shift | |
| 18-speed | |
 Transmission details ... |
| New Holland T6070 Elite Power | |
| Engine (gross) | 140 hp 104.4 kW |
| Engine (max) | 150 hp 111.9 kW |
| PTO (claimed) | 120 hp 89.5 kW |
| Drawbar (tested) | 107.4 hp 80.1 kW |
| PTO (tested) | 140.3 hp 104.6 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system. | |
| Capacity | |
| Fuel | 79.3 gal 300.2 L |
| Hydraulic system | 18.5 gal 70.0 L |
| Hydraulics | |
| Type | closed center load sensing |
| Capacity | 18.5 gal 70.0 L |
| Valves | 2 to 4 |
| Pump flow | 26.5 gpm 100.3 lpm |
| Total flow | 43.6 gpm 165.0 lpm |
| Steering flow | 17.1 gpm 64.7 lpm |
| Tractor hitch | |
| Rear Type | 2/3N |
| Control | electronic lower-link draft control |
| Rear lift | 12,185 lbs 5527 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 104.4 inches 265 cm |
| 95.3 inches (Terraglide axle) 242 cm | |
| 99.2 inches (SuperSteer axle) 251 cm | |
| Weight | 11836 to 12180 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Charging volts | 12 |
| Battery CCA | 1300 |
| Battery volts | 12 |
