New Holland T8020
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| New Holland T8020 Engine | |
| New Holland 8.3L 6-cyl diesel | |
| Fuel tank | 180 gal 681.3 L |
 Engine details ... | |
| New Holland T8020 Transmissions | |
| 19-speed full power shift | |
| 23-speed full power shift | |
 Transmission details ... |
| New Holland T8020 Power | |
| Engine (gross) | 244.1 hp 182.0 kW |
| Engine (max) | 277.6 hp 207.0 kW |
| PTO (claimed) | 200 hp 149.1 kW |
| Drawbar (tested) | 175.08 hp 130.6 kW |
| PTO (tested) | 245.61 hp 183.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with heat and air-conditioning. Optional luxury cab with leather seats, tinted windows, and sunscreens. |

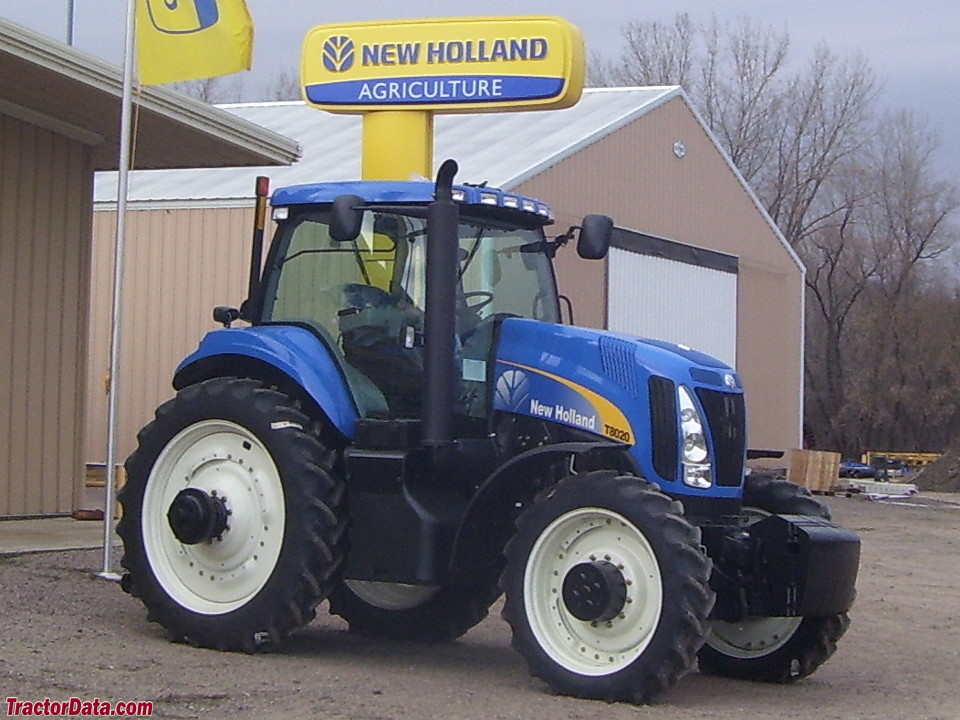

| Photos | |
 | |
 New Holland T8020 photos... | |
| Hydraulics | |
| Type | closed center load sensing |
| Pressure | 3249 psi 224.0 bar |
| Valves | 3 to 5 |
| Pump flow | 38.6 gpm 146.1 lpm |
| Tractor hitch | |
| Rear Type | IIIN/III |
| Rear lift | 14084 lbs 6388 kg |
| 16375 lbsOptOptional 7427 kg | |
| Front lift | 14,040 lbs 6368 kg |
| 14,240 lbs (SuperSteer axle) 6459 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@1988 |
| 1000@1984 | |
| Dimensions & Tires | |
| Wheelbase | 121.2 inches 307 cm |
| 129.3 inches (SuperSteer axle) 328 cm | |
| Weight | 19752 to 21270 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| 175 OptOptional | |
| Battery volts | 12 |
