John Deere 5625 Engine


John Deere 5625 tractor photo
2007 - 2008
5025 Series
Utility tractor
Series map:
5525
5625
91.0hp
99.0hp
Engine Detail
John Deere PowerTech 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Power (gross)99 hp
73.8 kW
Air cleanerpaper and felt elements
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Firing order1-3-4-2
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

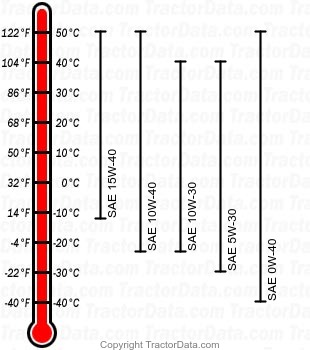

5625 diesel engine oil chart
Oil capacity9 qts
8.5 L
