John Deere 5603

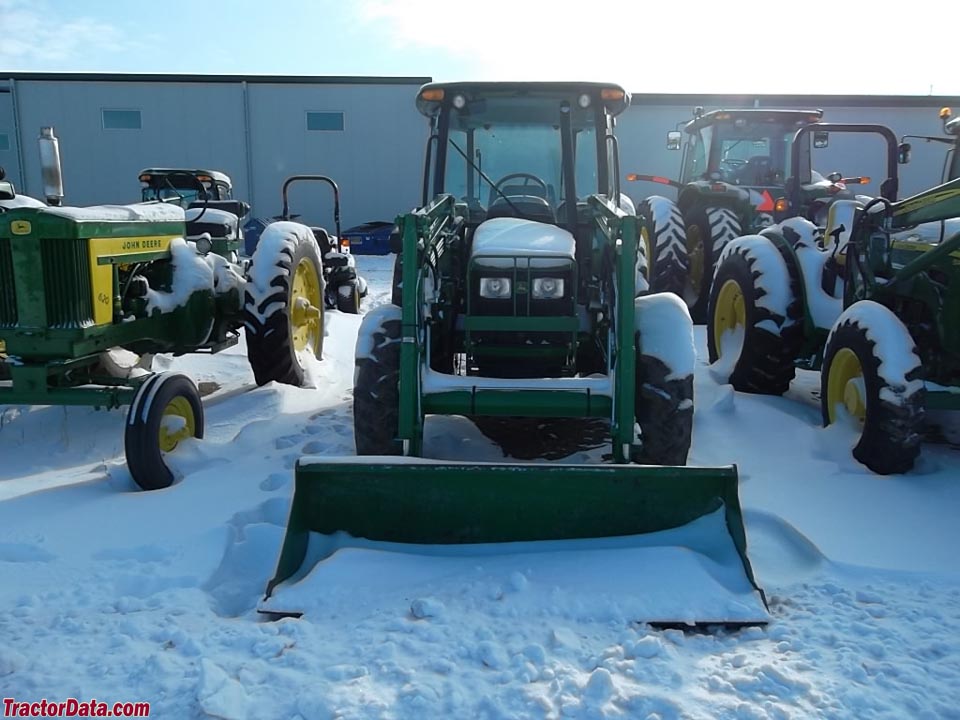

John Deere 5603 tractor photo
2007 - 2008
5003 Series
Utility tractor
Series map:
5403
5603
74.0hp
99.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
John Deere 5603 Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 5603 Power
Engine (gross)99 hp
73.8 kW
PTO (claimed)82 hp
61.1 kW
PTO (tested)83.78 hp
62.5 kW
Performance test details ...
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard.
Capacity
Fuel33.5 gal
126.8 L
Hydraulic system11.5 gal
43.5 L
Front hubs0.74 qts (each)
0.7 L
Front diff.4.8 qts
4.5 L
Hydraulics
Typeopen center
Capacity11.5 gal
43.5 L
Valves1 to 3
Pump flow15.9 gpm
60.2 lpm
Total flow22.5 gpm
85.2 lpm
Tractor hitch
Rear Type1/2
Rear lift (at 24"/610mm)3,374 lbs
1530 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E
 540/1000 OptOptional
Engine RPM540@2400
 540E@1700
Dimensions & Tires
Wheelbase85.7 inches
217 cm
Weight7,145 lbs
3240 kg
Front tire12.4-24
Rear tire18.4-30
Full dimensions and tires ...
5603 Serial Numbers
Location:Serial plate on the front-left tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
 120 OptOptional
Battery CCA750
Battery volts12
Battery Group31
References
5603 references literature
New 5003 Series Tractors published in 2008, by John Deere
