John Deere 5603 Engine


John Deere 5603 tractor photo
2007 - 2008
5003 Series
Utility tractor
Series map:
5403
5603
74.0hp
99.0hp
Engine Detail
John Deere PowerTech 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Power (gross)99 hp
73.8 kW
Air cleanerpaper and felt elements
Compression17.0:1
Rated RPM2400
Idle RPM825-2625
Starter volts12
Coolant capacity12 qts
11.4 L
Coolant change2100 h
Engine Oil

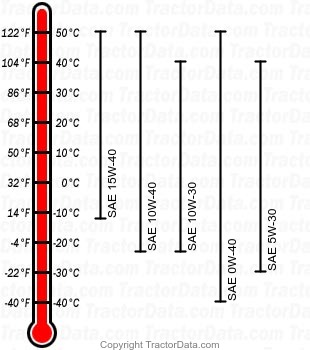

5603 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change300 h
