Tractors > John Deere > 2305

John Deere 2305 Engine



John Deere 2305 tractor photo
2005 - 2010
2000 Twenty Series
Sub-Compact Utility tractor
Series map:
2305
24.1hp
Engine Detail
Yanmar 3TNV76
diesel
3-cylinder
liquid-cooled inline
Displacement68 ci
1.1 L
Bore/Stroke2.99x3.23 inches
76 x 82 mm
Rated Power (gross)24.1 hp
18.0 kW
Air cleanerdual dry element
Compression23.4:1
Rated RPM3000
Operating RPM1170-3170
Torque41.7 lb-ft
56.5 Nm
Torque RPM3000
Starter volts12
Starter power1.6 hp
1.2 kW
Coolant capacity3.4 qts
3.2 L
Engine Oil

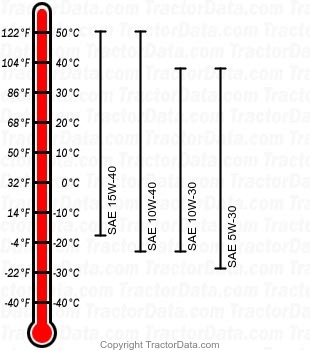

2305 diesel engine oil chart
Oil capacity3.4 qts
3.2 L
